Basic Hydraulics Trainers
Product Overview
- Hydraulics trainers consist of industrial grade hydraulics components and parts commonly used in industrial field
- Classified into basic level training experiments
- Customizable in modular format for logical analysis of electrical circuits
- Design and wiring in hydraulics and electro-hydraulics training experiments
- Includes electric control for hydraulics sequence control
- Expansion and compatibility supported with 4mm binding post socket
- Uses a standard plug-in profile panel for common use of training set
- Each part can be attached and detached horizontally or vertically on the profile panel without tools
Technical Specifications
Component List :
1. Plug Board Experiments Panel (600mm x 700mm)
Complete With :
- Built-in Pressure Manifold Module
- Built-in Tank Manifold Module

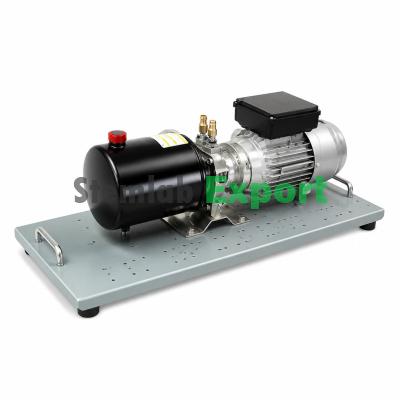

2. Power Pack Unit
Complete With :
- 1HP Single Phase Electric Hydraulic Motor Module
- Gear Pump
- Drive Coupling
- Oil Level Gauge with Thermometer
- Breather Cap
- Strainer
- Return Line Filter C/W Pressure Gauge
- One Way Check Valve
- Double Solenoid Directional Control Valve
- Modular Relief Valve
- Pressure Gauge (0150Bar / 03500psi)
- Gauge Cock
- Circuit Manifold
- 20 Liters Reservoir Tank
- Hydraulic Oil
3. Ball Valve Module
4. Pressure Gauge (0150Bar / 03500psi)
5. 4/3 Way Manual Control Valve C/W Built-In Relief Valve Module
6. Double Acting Hydraulic Cylinder Module
7. T-Joint Module Complete with Quick Release Coupling
8. Flexible Hydraulic Hose come with Female Quick Release Coupling (0.8m)
9. Flexible Hydraulic Transparent Suction Spring Return Hose come with Female Quick Release Coupling (1.2m)
Courseware and Accessories :
- Instruction Manual With Collection Of Circuit Exercises
- Hydraulic Simulation Software (Optional)
- Programmable Logic Controller Trainer 30 I/O (Optional)
Features & Benefits
- Modular design allows modifications to suit course or student requirements
- Custom sizes for the modular board can be provided upon request
- Additional modular components are available separately if required
- High quality durable rubber-silicone compound on the modular board ensures components stay in place while allowing easy removal and placement
- High quality industrial grade components with quick release coupling ready for use
- Plates made of high quality machined steel that do not deform after continuous usage
- Unit comes with various height (tilt) settings
- All modules include male quick release coupling
