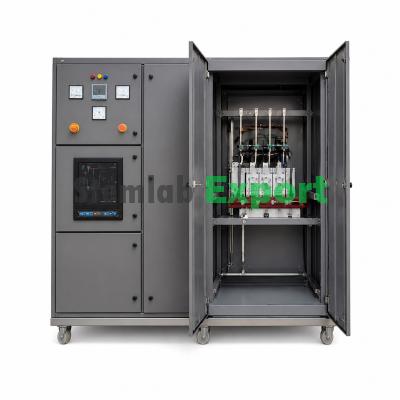

Main Switch Board Demonstrator (Single Feeder ACB 600A)
Product Overview
- Standard industrial LV switchboard adapted for training purposes
- Enables demonstration of switchgears, instruments and protective devices used in normal switchboards
- Allows functions to be explained and understood
- Suitable for students to study circuitry
- Allows dismantling and reassembly of component parts and rewiring practice
- Compartment doors and covers are hinged
- Can be opened manually using finger operated screws
Technical Specifications
- Suitable for 600 V, 3 phase, 4 wire, 50 Hz system
- Designed to withstand fault level of 31 MVA
Incomer Panel :
- Air circuit breaker 600 A TP&N, 43 kA with overload and shunt trip coils
Protective Devices :
- Digital combined IDMT over current and EFR
- C/T coil 600/5 A Class 10P10 for IDMT, O/C and EFR x 4 units
Instruments :
- Ammeter 0 600 A with selector switch
- Voltmeter 0 500 V with selector switch
- Pilot lamp (R/Y/B) main phase lamp x 3 units
- Power factor meter
- Frequency meter
- Three phase power quality meter
- Power management software
- C/T coil 600/5 A Class 3, 5 VA for power quality meter x 3 units
- C/T coil 600/5 A Class 3, 5 VA for ammeter and power factor meter x 3 units
- MCB 1 A, 6 kA for instrument control supply x 8 units
Outgoing Panel :
- MCCB 100 A TPN, 25 kA
- MCCB 150 A TPN, 25 kA
- MCCB 200 A TPN, 25 kA x 2 units
Power Factor Correction Panel :
- MCCB 60 A TPN, 25 kA
- Power factor regulator 6 step
- C/T coil 600/5 A Class 3, 5 VA for power factor controller
- MCCB 20 A TP, 25 kA x 6 units
- Magnetic contactor 20 A x 6 units
- Capacitor bank 5 kVAR (3 phase) x 6 units
- Pilot lamp for step indicator x 6 units
Labeling :
- All parts, instrument panels and equipment such as breaker, metering, protection device, outgoing and capacitor bank are clearly labeled
Construction :
- Modular, floor standing, fully enclosed heavy duty self contained design
- Suitable for front and back access
- Fabricated from 2 mm mild steel plate
- Mild steel treated with rust inhibiting primer and coated with epoxy powder paint
- Oven baked at high temperature for durability
- Heavy sheet steel console
- Engraved or label printed legends
- Equipped with heavy duty caster wheels
- Supplied with 3 phase 4 wire termination plug and socket
- Physical size approx. 1300 H x 1500 W x 650 D mm
Busbars :
- Hard drawn high conductivity copper busbars with current density of 1000 A per sq. in
Color identification :
- Red for red phase
- Yellow for yellow phase
- Blue for blue phase
- Black for neutral
Manual :
- Instruction manual with schematic diagram
