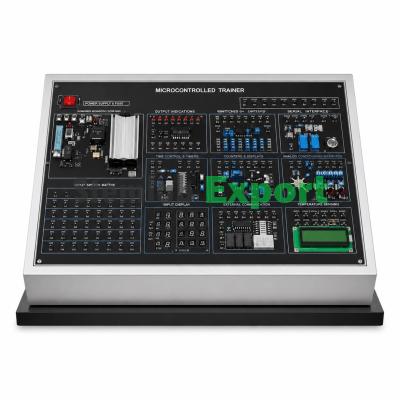

Microcontroller Trainer
Product Overview
- Microcontroller trainer designed for educational institutes and individuals
- Includes microcontroller module with I/O ports, DC power supply module and application modules
- Provides complete software package for programming, editing, assembling, compiling and execution
Main Frame :
- Microcontroller board built into main frame
- Provides visibility with controlled access
- Socket type I/O ports provided
- DC power supplies for +5 V, -5 V, +12 V, -12 V and GND
- Reset and restart button accessible
- Computer interfacing connectors avail
- Input voltage : AC 240 V, 50 Hz
Technical Specifications
Accessories :
- Power cord with fused mains plug
- Technical data and programming manuals
- RS 232 interfacing cable
- Instruction manuals and circuit diagrams with soft copy
Application Modules :
Includes built in modules powered by main unit
Module 1 : 8 Bits Data Display Module :
- 8 input sockets with LED indicators
- Used for monitoring output port status
Module 2 : 8 Bits Switch Input Module :
- Toggle switches with output sockets
- Used for input data
Module 3 : 7 Segment Display Module :
- Two 7 segment displays with driver IC
Module 4 : Digital to Analog Converter Module :
- 8 bit DAC with amplifier output
Module 5 : DC Motor Control Module :
- DC motor with relay control and PWM circuit
Module 6 : Stepper Motor Control Module :
- Stepper motor with buffer IC and LED indication
Module 7 : Keypad Module :
- 12 key matrix keypad
Module 8 : Dot Matrix Display Module :
- Dot matrix display with buffer control
Module 9 : LCD Display Module :
- LCD panel 2 x 16 characters
Module 10 : Trigger Sensors and Alarm Circuit Module :
- Photo coupled inputs with buzzer and lamp
Module 11 : Car Park System Application Module :
- Infrared detectors, motor gates and display for simulation
Interface Software :
- Monitor code and software utilities provided
- Assembler program
- Disassembler and memory editor utilities
- Program files for microcontroller
Features & Benefits
- Integration development environment program
- Display of internal architecture
- Edit, assemble, compile, download and run programs
- Supports C language and assembly language debugging
- Program trace and break functions
- Code memory disassemble function
- Register and memory dump and editing function
- Program scroll display and pop up menu
- Program stop using ESC key
- Supports multiple microcontroller writing functions
- Keyboard and mouse operation
- I/O experiments using C language
- Various I/O port experiments
- Dot matrix experiments
- DC motor and step motor experiments using DAC
- Voltmeter experiment using ADC
- Sound experiment
- Keyboard and LCD display function
- Power supply support for +5 V, -5 V, +12 V, -12 V
Additional Features :
- Standard CPU clocked at high frequency
- 50 I/O lines with socket type ports
- SRAM for program variables and code
- Flash ROM for non volatile storage
- Supports multiple baud rates
- LCD display support
- Dedicated LED indicators
- Bus expansion capability for additional peripherals
- Monitor program for easy development
