Sensor Trainer
Product Overview
- Supports practical learning of sensor and transducer topics
- Enables hands-on experimentation, circuit construction, and evaluation
- Each module includes labeled block diagrams, connection interfaces, and test points
Technical Specifications
Experiment Modules
1. Photo Sensor Module
- Input: 12 24V DC
- Output: NPN open collector
- Range: 100 mm
- Target: Opaque and translucent materials
- Response time: 1 ms
2. Diffuse Reflective Photoelectric Sensor Module
- Input: 12 24V DC
- Output: NPN open collector
- Range: 100 mm
- Mode: Light ON / Dark ON selectable
- Target: Opaque and translucent materials
- Response time: 1 ms
3. Retro-Reflective Photoelectric Sensor Module
- Input: 12 24V DC
- Output: NPN open collector
- Range: up to 3 m
- Mode: Light ON / Dark ON selectable
- Target: Opaque material (minimum diameter 75 mm)
- Response time: 1 ms
4. Through-Beam Photoelectric Sensor Module
- Input: 12 24V DC
- Output: NPN open collector
- Range: up to 10 m
- Mode: Light ON / Dark ON selectable
- Target: Opaque material (minimum diameter 12 mm)
- Response time: 1 ms
5. Capacitive Proximity Sensor Module
- Detects metallic and non-metallic objects
- Input: 12 24V DC
- Range: 15 mm
- Output: NPN
- Frequency: 50 Hz
6. Inductive Proximity Sensor Module
- Detects metallic objects
- Input: 12 24V DC
- Range: 15 mm
- Output: NPN
- Frequency: 200 Hz
7. Ultrasonic Sensor
- Voltage: 5V DC
- Current: 15 mA
- Frequency: 40 kHz
8. Humidity Sensor Module
- Voltage: 5V DC
- Adjustable sensitivity
- Analog and digital output
9. Pressure Switch Module
- Max voltage: 250V
- Ratings: 125VAC/20A, 250VAC/10A, 24VDC/64A
- Contact: SPDT
- Range: -0.2 to 7.5 bar
- Differential: 0.7 to 4 bar
10. LVDT Module
- Converts displacement to electrical signal
- Resistance: 1 k 10%
- Speed: up to 5 m/s
- Temperature: -40 C to 150 C
- Linear range: 0.05 mm
- Operating voltage: 24V DC
11. Thermocouple Temperature Sensor Module
- Sensors: Type K thermocouple and RTD PT100
- Includes heater with control
- Supply: 24V DC
- Includes required connectors
12. Pressure Gauge Module
- Mechanical pressure measurement
- Range: 0 to 150 psi
13. Load Cell Module
- Load capacity: 6 kg
- Output: 2.0 mV/V
- Input resistance: 405
- Output resistance: 350
14. Load Cell Display Module
- Input: 24V DC
- Impedance: 100 M
- Display: -1999 to 1999
- Output: 4 20 mA or 0 10V
- Relay output: 250V AC / 3A
15. Temperature Process Controller Module
- Input: 220 240V AC
- Accuracy: 5% FS
- Control: PID / ON-OFF
- Supports thermocouples and RTDs
- Output: Relay and SSR
16. Magnetic Float Sensor Module
- Reed switch type
17. Level Control Module
- Normally closed type
- Operating voltage: 24V DC
18. DC Milliammeter Module
- Range: 0 to 2 A
- Operating voltage: 240V AC
- Temperature: -10 C to 50 C
19. Temperature Measurement Module
- Voltage: 24V DC
- Range: -50 C to 110 C
- Accuracy: 0.1 C
20. Hand Pump
- Portable and lightweight
- Pressure range: up to 100 psi
21. Power Supply Module
- Input: 240V AC / 50 Hz
- Output: 24V DC
- Includes ON/OFF switch with indicator
22. Weight Set
- 200g (1), 100g (2), 50g (1), 20g (2), 10g (1)
23. Digital Counter Module
- Supply: 24V DC
- Display: 4 digits
- Load: max 5A
- Reset via terminal
24. Digital Timer Module
- Supply: 24V DC
- Contact: 2a 2b
- Load: max 5A
- Delay: 1 10 seconds

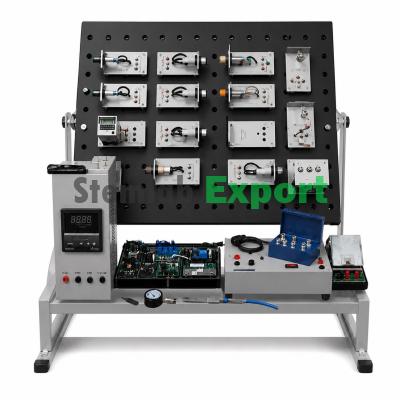

25. Modular Profile Panel
- 148 plug points
- Adjustable tilt
- Dimensions: 600 700 mm
Experiment Topics Coverage
- Sensor beam characteristics and coverage
- Sensing axis and range
- Object detection and hysteresis
- Repeatability and response time
- Pressure measurement and gauge operation
- Load cell and transmitter operation
- Proximity and photoelectric sensor operation
- LVDT operation
- Temperature sensing and control
- Level control and float sensor operation
- Electrical measurement techniques
Accessories
- 4 mm connecting leads (set)
- Power cord
Manuals
- Operation manual
- Experiment manual
Warranty
- Two years warranty covering parts and labor
Features & Benefits
- Educational training system for studying sensor and transducer fundamentals and operation
- Covers a wide range of sensors including temperature, pressure, proximity, photoelectric, load cell, float, ultrasonic, and humidity sensors
- Modular design allows customization based on course requirements
- Expandable with additional modules
- Durable plug-in panel with rubber-silicone support for secure and easy component placement
- Adjustable panel tilt settings
